Nickel Alloy 400 Properties and Applications
Table of Contents
1. Introduction of Monel 400
Alloy 400, or Monel 400, UNS N04400，is a strong nickel-copper alloy. It is well-known for its great resistance to corrosion and strong mechanical properties. Many industries commonly use it, especially in marine, chemical, and aerospace applications.
This piece examines Monel 400. It discusses its chemical makeup, physical properties, and uses. It also compares it to other nickel alloys.
2. Chemical Composition and Physical Properties of Monel 400
Monel 400 primarily consists of nickel and copper, with small amounts of iron, manganese, and silicon. Below is a table summarizing the chemical composition and key physical properties of it:
2.1 Chemical Composition of Monel 400
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | 63.0 – 70.0 |
| Copper (Cu) | 28.0 – 34.0 |
| Iron (Fe) | ≤ 2.5 |
| Manganese (Mn) | ≤ 2.0 |
| Silicon (Si) | ≤ 0.5 |
| Carbon (C) | ≤ 0.3 |
| Sulfur (S) | ≤ 0.024 |
2.2 Physical Properties of Monel 400
| Property | Value |
|---|---|
| Density | 8.80 g/cm³ |
| Melting Point | 1,300 – 1,400 °C |
| Thermal Conductivity | 35 W/m·K |
| Electrical Resistivity | 0.49 x 10⁻⁶ Ω·m |
| Yield Strength (at 20°C) | 240 MPa |
| Tensile Strength (at 20°C) | 550 MPa |
| Elongation (in 50 mm) | 40% |
3. Key Characteristics of Monel 400
Monel 400 is known for its excellent performance in harsh conditions, making it a top choice as a corrosion-resistant material in various industries.
3.1 Corrosion Resistance of Monel 400
One of the standout features of Monel 400 is its resistance to corrosion. It performs exceptionally well in environments that are exposed to salt water, acids, and chlorides. This is why it’s used in marine environments and chemical processing. It also resists sulfuric and hydrochloric acids, making it a reliable material in chemical processing equipment. Additionally, Nickel Alloy 400 can resist stress corrosion cracking, which means it holds up well under stress in corrosive conditions.
3.2 Strength and High-Temperature Resistance
Monel 400 is strong and can handle high temperatures, up to 1,000°F (538°C). It is resistant to work hardening, which means it doesn’t get weaker over time under pressure. Because of this, it’s perfect for equipment like chemical reactors and heat exchangers that operate at high temperatures. It also performs well in reducing conditions, such as those found in certain industrial processes.
3.3 Fabrication and Machining
Experts recognize Nickel alloy 400 for its excellent machinability and weldability. You can easily change it into different forms, like sheets, rods, and pipes. Welders can use methods like TIG, MIG, and resistance welding. This gives them flexibility in using different alloys.
4. Applications of Monel 400
Many industries widely use Monel 400 because of its robust mechanical properties and excellent corrosion resistance. Some of the most common applications include:
4.1 Marine Industry
- Sea water pumps
- Heat exchangers
- Flanges and valves
The alloy’s corrosion resistance in saltwater environments makes it a prime choice for components exposed to marine conditions.
4.2 Chemical and Petrochemical Industries
- Chemical reactors
- Piping systems
- Heat exchangers
In the chemical and petrochemical sectors, Nickel Alloy 400 is a preferred material for chemical processing equipment. Its resistance to sulfuric and hydrochloric acids and high temperatures ensures long-lasting performance in these demanding conditions.
4.3 Aerospace Industry
- Turbine blades
- Gas turbines
- High-pressure engine components
Monel 400 is strong and can resist heat well. Because of this, engineers often use it in aerospace applications.
4.4 Energy Sector
- Nuclear power plant components
- Oil drilling equipment
The energy industry often uses nickel alloy 400 for parts that face tough conditions. This includes nuclear reactors and oil extraction equipment.
5. Manufacturing and Supply of Monel 400

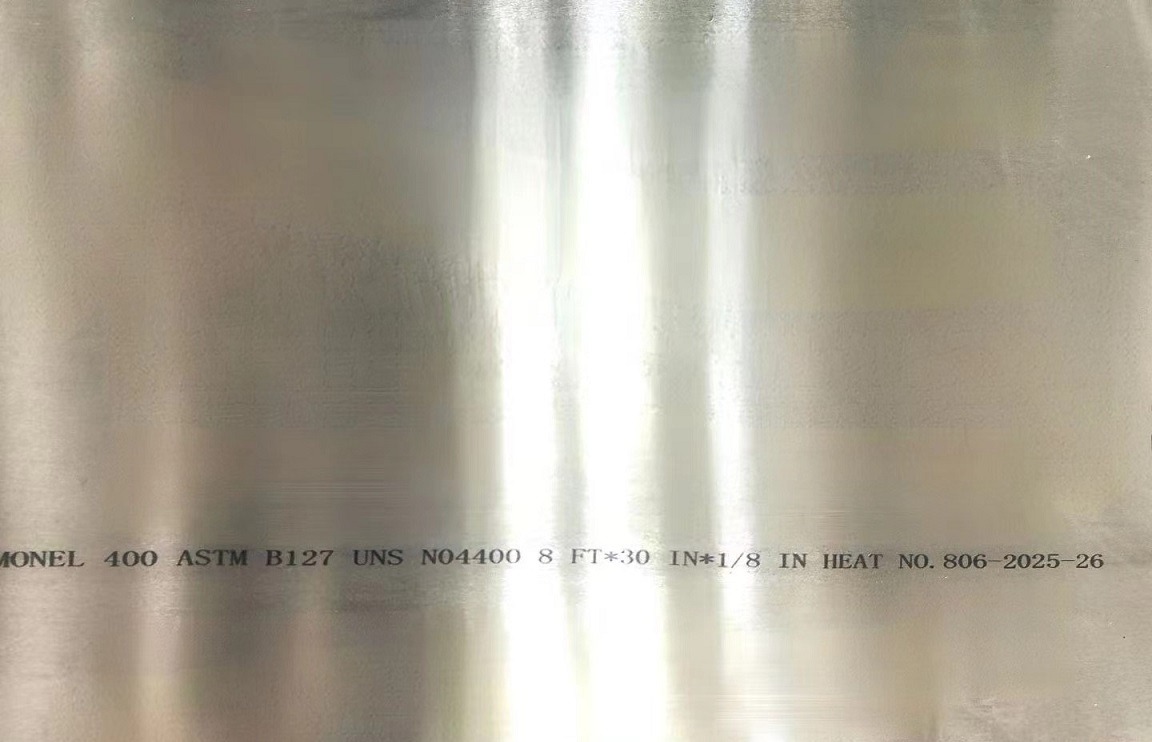

Manufacturers can produce various products from nickel alloy 400, including sheets, bars, plates, pipes, and wires. These products are available in different grades to meet specific mechanical and environmental requirements. Common manufacturing processes for nickel alloy 400 include hot working, cold working, and heat treatment.
SOUTHERLY ALLOY provides high-quality nickel alloy 400 materials and products, ensuring a reliable supply for industrial applications across diverse sectors.
6. Comparison with Other Nickel Alloys
People often compare Nickel alloy 400 to other nickel-based alloys like Inconel 625, Hastelloy C-276, and Monel 500. Below is a brief comparison:
| Alloy | Corrosion Resistance | High-Temperature Resistance | Strength | Cost |
|---|---|---|---|---|
| Nickel Alloy 400 | Excellent in salt water, acids, and chlorides | Up to 1,000°F (538°C) | Moderate | Relatively Low |
| Inconel 625 | Very good in high-temperature, oxidizing environments | Up to 2,000°F (1,093°C) | High | High |
| Hastelloy C-276 | Superior in aggressive chemical environments | Moderate to high | High | High |
| Monel 500 | Excellent in marine environments | Up to 1,400°F (760°C) | High | Moderate |
7. Conclusion
Nickel alloy 400 (Monel 400) is a strong and reliable material with excellent corrosion resistance and high strength properties. Industries that need strong materials in tough conditions especially value it. This includes the marine, chemical, and aerospace sectors.
Processing equipment, seawater pumps, and chemical reactors use nickel alloy 400. It provides great performance and lasts a long time.
Nickel alloy 400 has great properties and many uses. An important material exists in many industries. Reliable suppliers like SOUTHERLY ALLOY provide a steady supply of high-quality products.
