Hastelloy B-3｜Alloy B 3｜N10675｜Pipe and Tube
Hastelloy B-3 alloy is a Ni-Mo corrosion-resistant alloy and also a low-carbon alloy. To solve the technical problems caused by insufficient stability, while retaining the corrosion resistance characteristics of B2, it solves the problems of welding cracks and fracture during processing. And this alloy also has better corrosion resistance than B2. It has good corrosion resistance at any temperature and concentration of HCl, and also has good corrosion resistance to H2SO4, CH3COOH, formic acid, H3PO4, and other non oxidizing media. Moreover, due to the adjustment of its chemical composition, its thermal stability has been significantly improved compared with B2, and it has high resistance to spot corrosion, stress corrosion cracking, knife corrosion, and corrosion in the Heat-affected zone of welding. The tendency to form harmful phases between metals is minimal, making it more resilient than B-2 during heating and subsequent various forms of thermal cycling.
Product Description
1. Chemical Composition of Hastelloy B-3
| Chemical Composition（wt. %） | ||||||||||||
| Brands No. | UNS | C | Cr | Ni | Ti | Fe | Co | Mn | Si | Mo | Cu | W |
| Hastelloy B3 | N10675 | ≤0.01% | 1%~3% | ≥65% | ≤0.2% | 1~3% | ≤3% | ≤3% | ≤1% | 27%~32% | ≤0.2% | ≤3% |
2. Physical Properties:
| Physical properties | Mechanical Properties & Others | ||||||
| Brands No. | Density g/cm3 | Melting point | Yield Strength | Tensile Strength Mpa | Elongation A5 % | Hardness HRB | |
| /℃ | Rp0.2(MPa) | Rp1.0(Mpa) | |||||
| Hastelloy B3 | 9.20 | 1370~1418 | 350 | 760 | 40% | ||
3. Product Implementation Standards:
| Trademark* | Material | UNS | W.Nr. | Density | Tube | Pipe |
| smls/wld | smls/wld | |||||
| Hastelloy B-3 | Alloy B-3 | N10675 | 2.4600 | 9.20 | B622/B626 | B622/B619 |

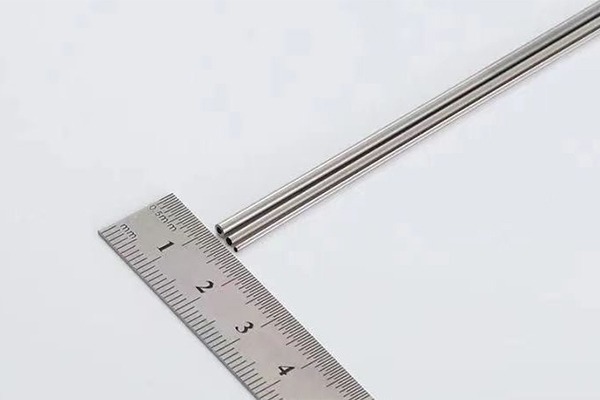

4. Specifications Available for Pipes and Tubes of Hastelloy B-3 :
- Seamless Tube: OD6-630 WT0.3-100mm
- Capillary: OD0.2-6 WT0.02-2mm
- Welded Pipe: on demand.
5. Applications
Widely used in the production of high-temperature components for:gas turbines in aviation, naval vessels, and industrial fields, such as turbine blades, guide vanes, turbine discs, high-pressure compressor discs, burners, and energy conversion. Spacecraft, rocket engines, nuclear reactors, petrochemical equipment, coal conversion and other equipment.
