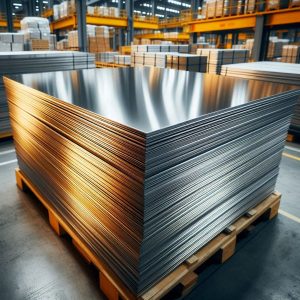

Hastelloy C 276｜Alloy C-276｜N10276｜Sheets and Plates
Hastelloy C276 is a nickel-chromium-molybdenum-tungsten alloy known for its excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. It is highly versatile and suitable for a wide range of chemical process environments.
Product Features
- Excellent resistance to pitting and crevice corrosion
- High resistance to stress corrosion cracking
- Good mechanical properties
- Resistant to oxidizing and reducing environments
Product Description
1. Chemical Composition of Hastelloy C-276 Sheets and Plates
| Chemical composition（wt. %）of Alloy C-276 | |||||||||||||
| Brands No. | Alloy | Ni | Cr | Mo | Fe | W | Co | C | Mn | Si | V | P | S |
| Hastelloy C-276 | N10276 | Balance | 14.5% ~16.5% | 15% ~17% | 4%~ 7% | 3%~ 4.5% | ≤2.5% | ≤0.01% | ≤1.0% | ≤0.08% | ≤0.35% | ≤0.04% | ≤0.03% |
2. Physical and Mechanical Properties of Hastelloy C-276 Sheets and Plates
| Physical properties | Mechanical Properties & Others | ||||||
| Brands No. | Density g/cm3 | Melting point | Yield Strength | Tensile Strength Mpa | Elongation A5 % | Hardness HRB | |
| /℃ | Rp0.2(MPa) | Rp1.0(Mpa) | |||||
| Alloy C276 | 8.87 | 1325~1370 | ≥283 | ≥690 | 40% | ||
3. Product Implementation Standards of Hastelloy C-276 Sheets and Plates
| Trademark* | Material | UNS | W.Nr. | Density | ASTM | ASME |
| Hastelloy C-276 | Alloy C-276 | N10276 | 2.4819 | 8.87 | B575, B619, B622, B626 | SB-575, SB-619, SB-622, SB-626 |
4. Applications of Hastelloy C-276 Sheets and Plates
- Chemical processing equipment
- Pharmaceutical industry
- Oil and gas industry
- Nuclear reactors
5. Specifications of Hastelloy C-276 Sheets and Plates
- Available Forms: Sheet, plate, strip, bar, wire, pipe
- Thickness: 0.5 mm to 100 mm
- Width: Up to 2000 mm
- Length: Up to 6000 mm or custom lengths
6. Contact Us for More Information of Hastelloy C-276 Sheets and Plates
As a Professional Nickel Alloy & Stainless Steel Pipes and Tubes Exporter, Southerly Special Alloy was founded in Dec-2021.Our core members have more than 5 years experience in Nickel Alloy and Stainless Steel manufacturing and related fields.We serve customers worldwide, our main markets are in Europe, Middle East, South East Asia, South America and Africa.
Please fill out the form below or send an email to sales@southerly-alloy.com for more information.
