Incoloy 800H｜Alloy 800H｜N08810｜Pipe and Tube
Incoloy 800H (Alloy 800H,UNS N08810) is an iron-nickel-chromium alloy having the same basic composition as Incoloy 800, with significantly higher creep rupture strength. The higher strength results from close control of carbon, aluminum and titanium contents in conjunction with a high temp anneal. Incoloy 800 H has further modifications to the combined titanium and aluminum levels (0.85 to 1.2%) to ensure optimum high temperature properties.
The alloy is dual certified and combines the properties of both forms. The chemical balance allows the alloy to exhibit excellent resistance to carburization, oxidation and nitriding atmospheres. 800HT will not become embrittled even after long periods of usage in the 1200-1600 deg F range where many stainless steels become brittle. Typical applications for the alloy include ethylene pyrolysis, hydrocarbon cracking, cracking furnaces for vinyl chloride, diphenol and acetic acid. The alloy is also used for valves, fittings and other components exposed to corrosive attack from 1100 to 1800 deg F.
Product Description
1. Chemical Composition of Incoloy 800H
| Chemical Composition（wt. %） | |||||||||||
| Brands No. | Materials | UNS | C | Cr | Ni | Ti | Fe | Mn | Si | Cu | Al |
| Incoloy 800H | Alloy 800H | N08810 | 0.05~ 0.15% | 19~ 23% | 30~ 35% | 0.15~ 0.6% | balance | ≤1.5% | ≤1% | ≤0.75% | 0.15~0.6% |
2. Physical Properties of Incoloy 800H
| Physical properties | Mechanical Properties & Others | ||||||
| Brands No. | Density g/cm3 | Melting point | Yield Strength | Tensile Strength Mpa | Elongation A5 % | Hardness HRB | |
| /℃ | Rp0.2(MPa) | Rp1.0(Mpa) | |||||
| Inconel 800H | 8.00 | 1350~1400 | 500 | 210 | 35% | ≥175 | |
3. Product Implementation Standards of Incoloy 800H
| Trademark* | Material | UNS | W.Nr. | Density | Tube | Pipe |
| smls/wld | smls/wld | |||||

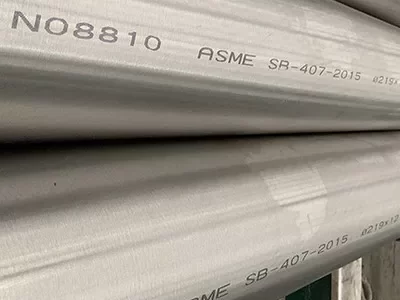

| Incoloy 800H | Alloy 800H | N08810 | 1.4876 | 8.00 | B163/B515 | B407/B514 |
4. Specifications Available for Pipes and Tubes of Incoloy 800H :
- Seamless Tube: OD6-630 WT0.3-100mm
- Capillary: OD0.2-6 WT0.02-2mm
- Welded Pipe: on demand.
5. Applications of Incoloy 800H
Alloy 800H is frequently used in applications that involve long-term exposure to elevated temperatures where resistance to oxidation, carburization and other types of elevated temperature corrosion is required. Heat treatment and power generation are two common industries where alloy 800H is used. Typical applications include superheater and reheater tubing, headers, pigtails, outlet manifolds and sheathing for heating elements.
6. Contact Us for More Information of Nickel Alloy Pipes and Tubes
As a Professional Nickel Alloy & Stainless Steel Pipes and Tubes Exporter, Southerly Special Alloy was founded in Dec-2021.Our core members have more than 5 years experience in Nickel Alloy and Stainless Steel manufacturing and related fields.We serve customers worldwide, our main markets are in Europe, Middle East, South East Asia, South America and Africa.
Please fill out the form below or send an email to sales@southerly-alloy.com for more information.
