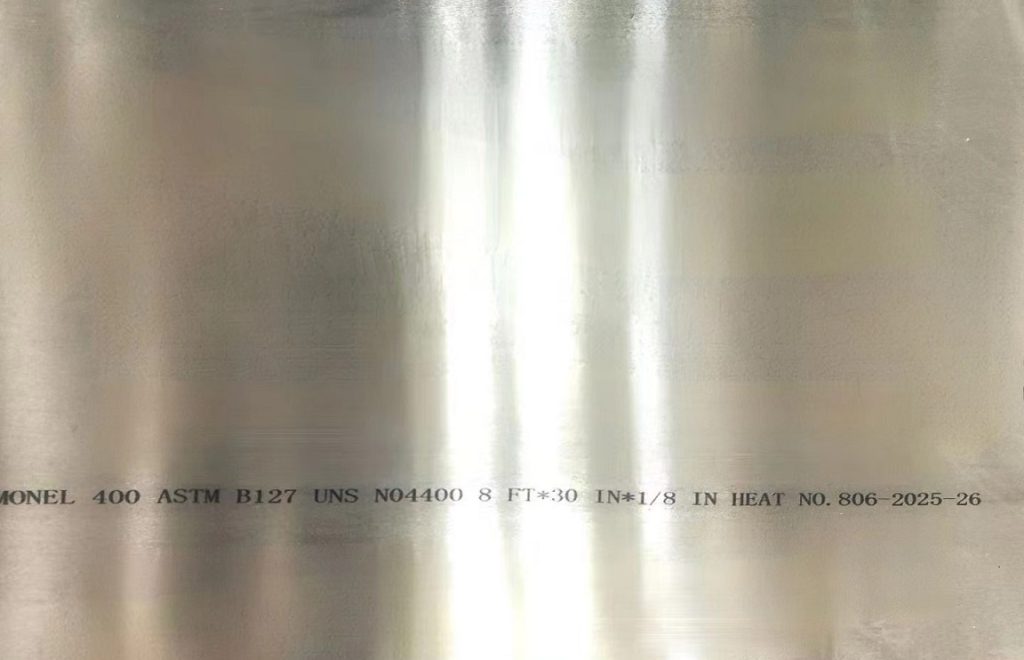

Monel 400｜Alloy 400｜ N04400｜Sheets and Plates
Monel 400 (Alloyl 400, UNS N04400/W.Nr. 2.4360 and 2.4361) is a nickel-copper alloy known for its excellent resistance to corrosion and high strength. It is widely used in marine and chemical processing applications.
Product Features
- Excellent resistance to corrosion in a wide range of media
- High strength and toughness over a wide temperature range
- Good weldability and formability
- Resistant to chloride-ion stress-corrosion cracking
Product Description
1. Monel 400 Sheets and Plates Chemical Composition
| Chemical Composition（wt. %） | |||||||||
| Common Brands No. | UNS | GB No. | C | Ni | Fe | Mn | Si | Cu | S |
| Monel 400 | N04400 | NCu30 | ≤0.30 | ≥63 | ≤2.5 | ≤2 | ≤0.5 | 28~34 | ≤0.024 |
2. Physical and Mechanical Properties of Monel 400 Sheets and Plates
| Physical properties | Mechanical Properties & Others | ||||||
| Brands No. | Density g/cm3 | Melting point 0C | Yield Strength | Tensile Strength | Elongation A5 % | Hardness HRB | |
| Rp0.2(MPa) | Rp1.0(Mpa) | ||||||
| Monel 400 | 8.83 | 1300-1390 | 170 | 480 | 35 | ||
3. Product Implementation Standards of Alloy 400
| Brands No. | Product Standard | Dimensions |
Monel 400 Sheets & Plates | ASTM B127 | OD1-500mm，THk0.05-50mm |
4. Applications of Alloy 400 Sheets and Plates
- Marine engineering
- Chemical and hydrocarbon processing equipment
- Gasoline and freshwater tanks
- Crude petroleum stills
- De-aerating heaters
- Boiler feed water heaters and other heat exchangers
- Valves, pumps, shafts, fittings, and fasteners
- Industrial heat exchangers
- Chlorinated solvents
- Crude oil distillation towers
5. Specifications of Monel 400 Sheets and Plates Available
- Available Forms: Sheet, plate, strip, bar, wire, pipe
- Thickness: 0.5 mm to 100 mm
- Width: Up to 2000 mm
- Length: Up to 6000 mm or custom lengths
